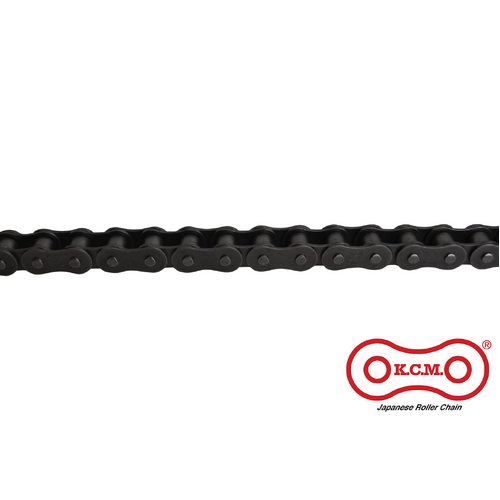

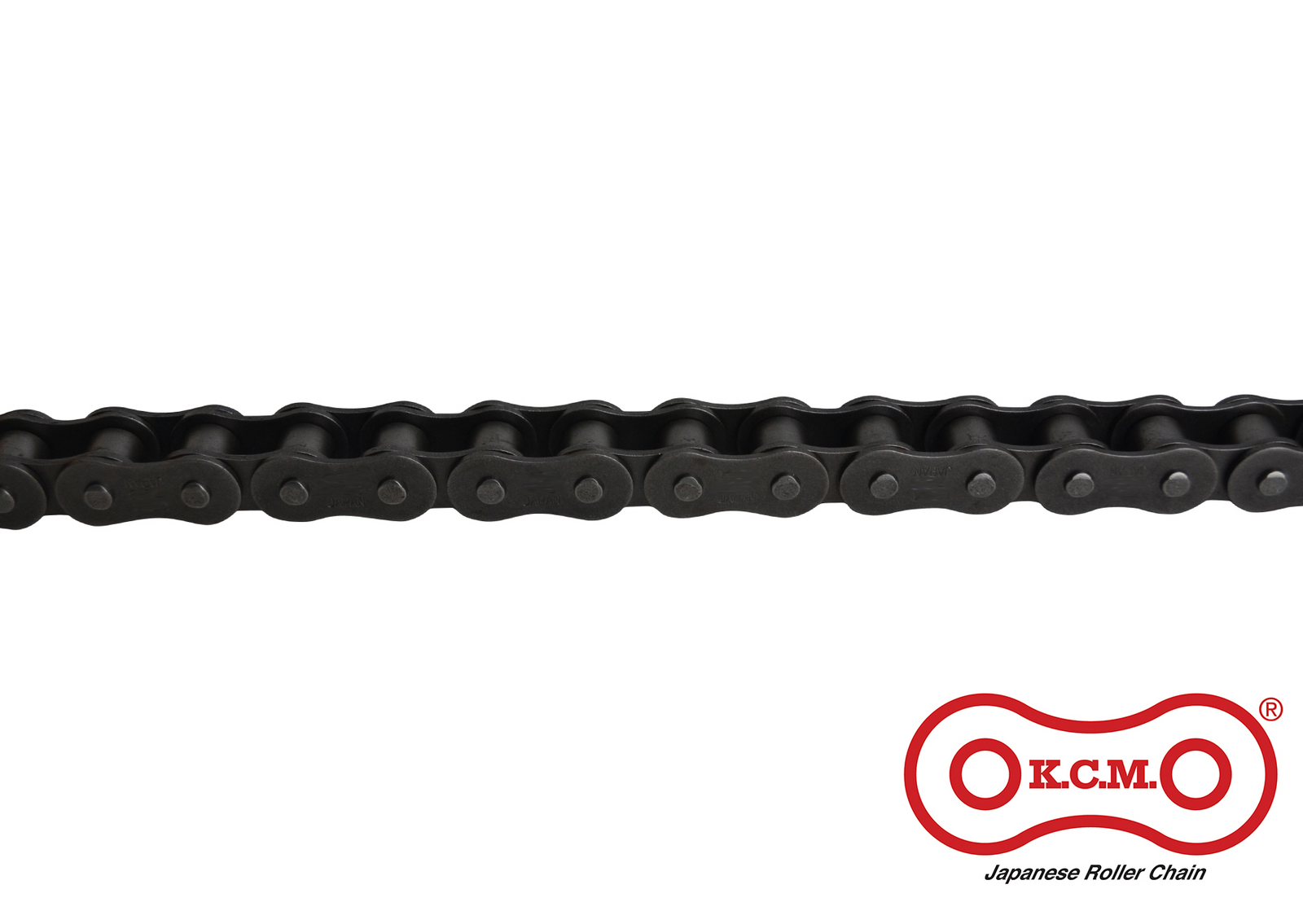

200-1 KCM Premium Roller Chain 2-1/2 Inch Pitch ASA Simplex - Price per 10' Roll

$2,157.76Pack Size: 10



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 200-1-KCM
Brand KCM
Shipping Weight 5.1303kg
Grade Premium
Norm. ANSI, JIS
(P) Pitch (mm) 63.5 (2-1/2")
(W) Width Between Inner Pitch (mm) 38.1
(D) Roller Diameter (mm) 39.68
(d) Pin Diameter (mm) 19.86
(A) Pin (mm) 39.3
(B) Pin (mm) 47.7
(A+A) L¹ (mm) 78.5
(A+B) L¹ (mm) 87
(L) Offset (mm) 89.2
(T) Link Plate Thickness (mm) 8
(H) Link Plate Height (mm) 58.4
