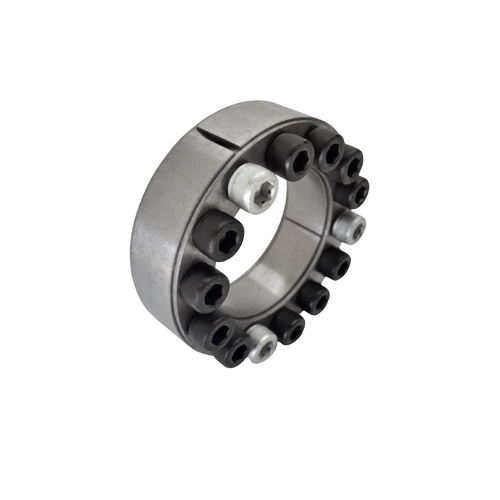

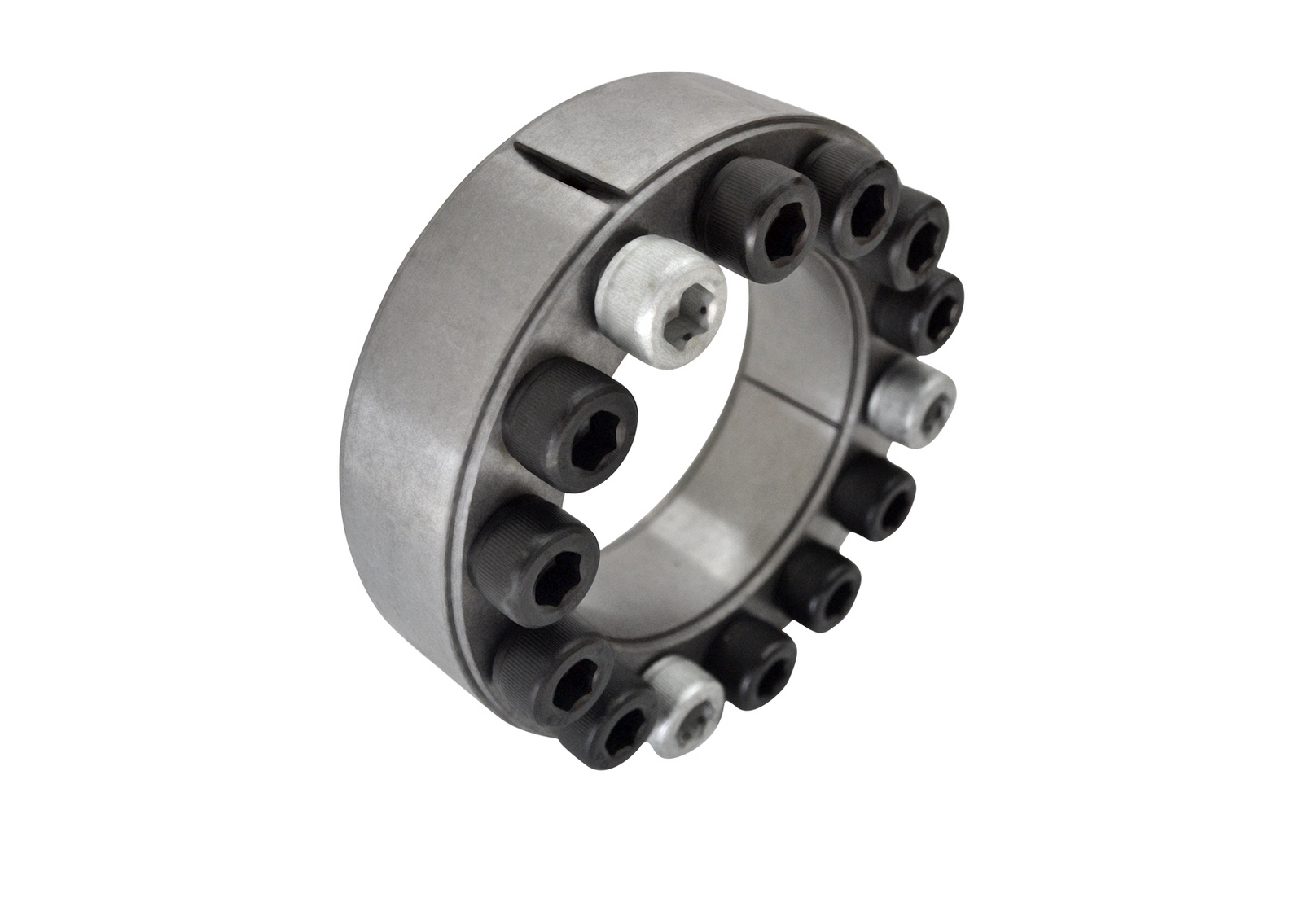

170X225mm Type 01 Locking Assembly

$467.79



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU REACH01-170
(d) Inside Ø (mm) 170
(D) Outside Ø (mm) 225
Dimension L¹ (mm) 38
Dimension L² (mm) 44
(L) Assembled Length (mm) 58
Locking Unit Type Type 01
No. Of Clamping Screws 22
Screw Size M14X40
Screw Tightening Torque (Nm) 187
