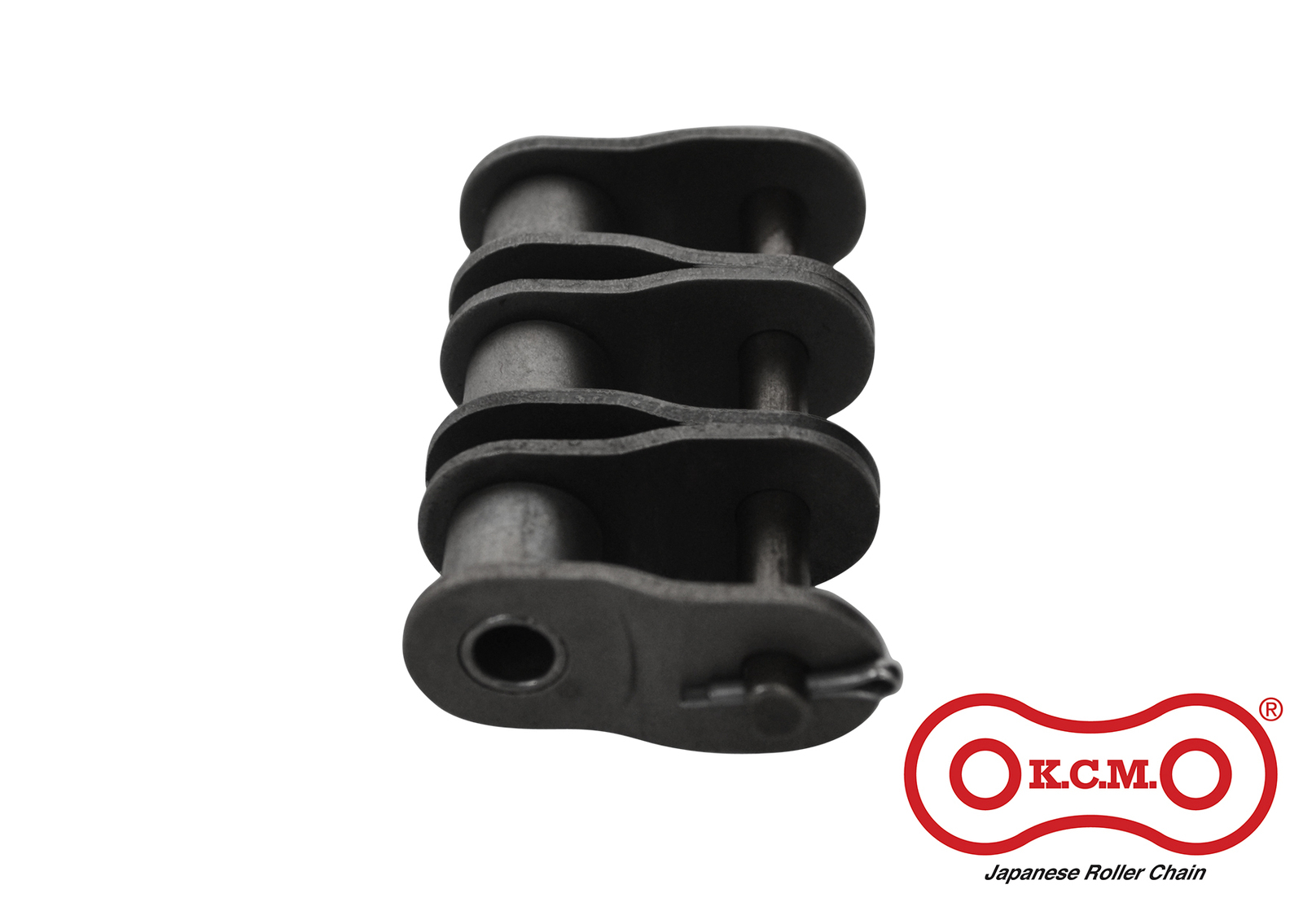

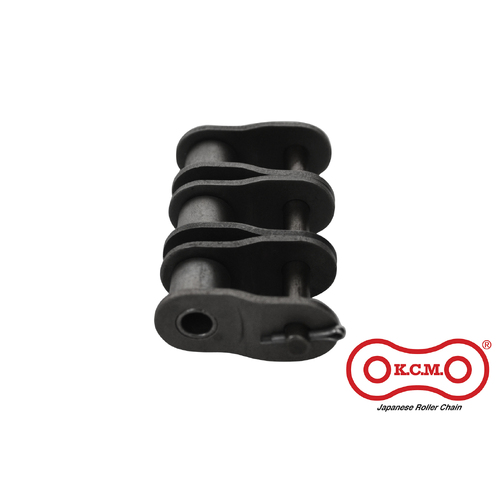

16B-3OL KCM Premium Offset / Half Link 1 Inch Pitch BS Triplex

$69.32



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 16B-3OL-KCM
Brand KCM
Grade Premium
Norm. ISO-B, ISO 606-B
(P) Pitch (mm) 25.4 (1")
(W) Width Between Inner Pitch (mm) 17.02
(D) Roller Diameter (mm) 15.88
(d) Pin Diameter (mm) 8.28
(L) Offset (mm) 105.25
(T) Link Plate Thickness (mm) 4
(H) Link Plate Height (mm) 19.7
(L²) Pin (mm) 101.9
