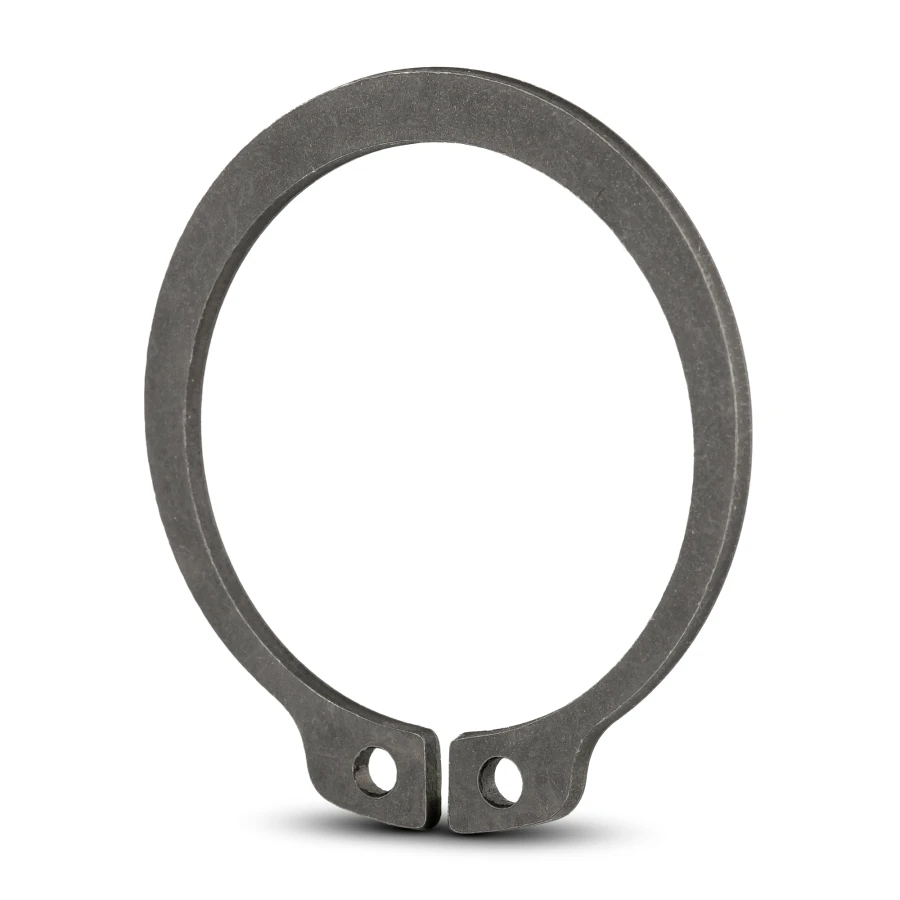

1460-100 External Circlip Heavy Duty for 100mm Shaft to DIN 471 Spring Steel

$22.13



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 1460-100
Material SPRING STEEL
Max. Operating Temperature (deg. C) +150°C
Min. Operating Temperature (deg. C) -30°C
Norm. DIN 471
(t) Thickness (mm) 4
(S) Shaft Ø (mm) 100
(G) Slot Ø (mm) 96.5
(W) Slot Width (mm) 4.15
(D) Inside Ø Of Circlip (mm) 94.5
