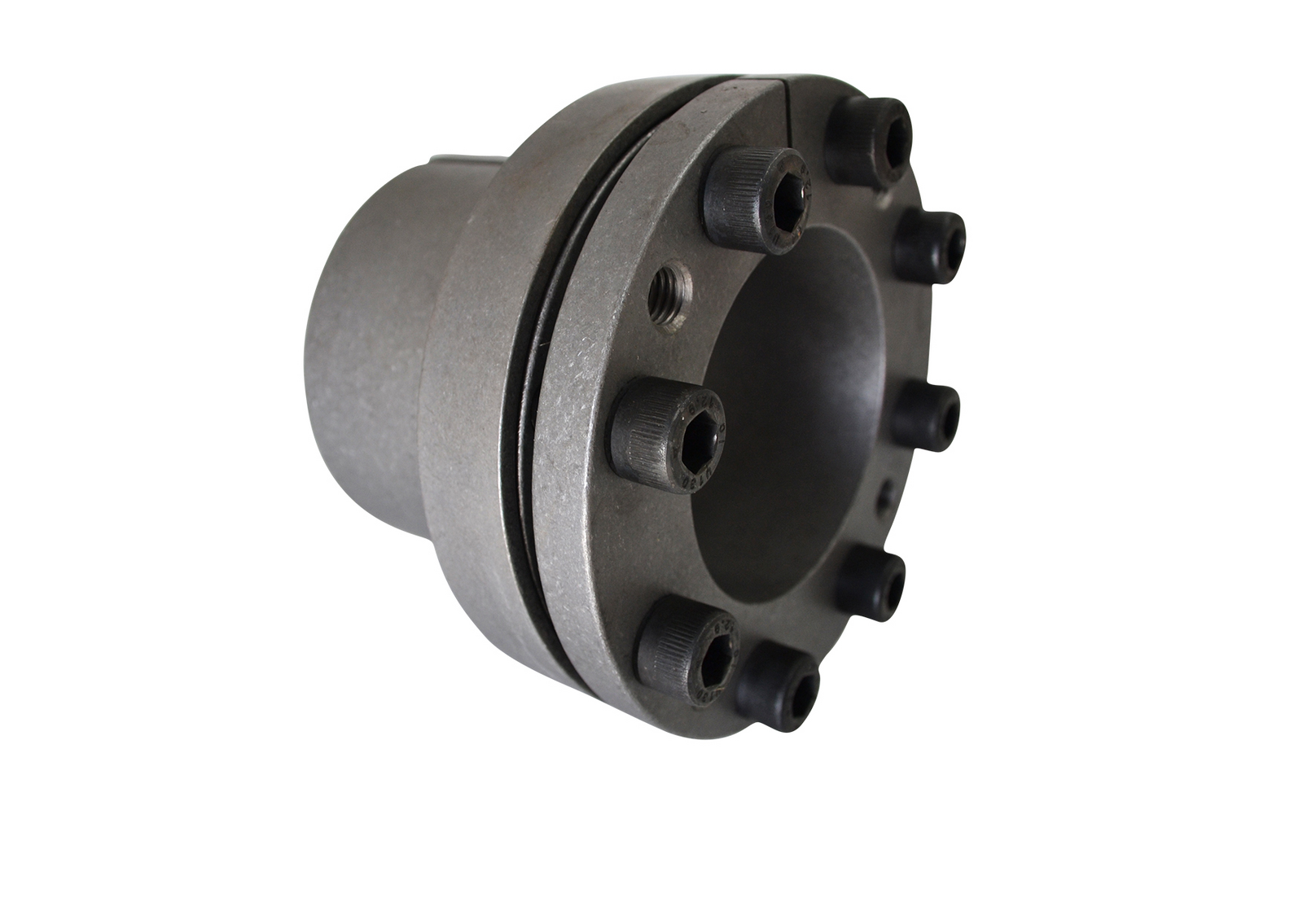

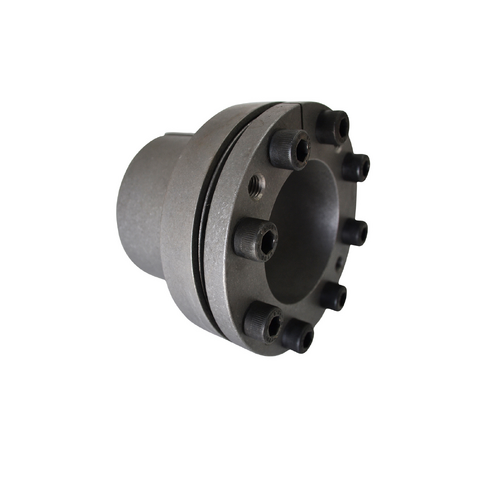

140X175mm Type 02 Locking Assembly Flanged Self Centering

$1,025.24



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU REACH02-140
(d) Inside Ø (mm) 140
(D) Outside Ø (mm) 175
Dimension D¹ (mm) 205
Dimension L¹ (mm) 90
Dimension L² (mm) 114
(L) Assembled Length (mm) 139
Locking Unit Type Type 02
No. Of Clamping Screws 16
Screw Size M4X30
Screw Tightening Torque (Nm) 145
Dimension L³ (mm) 127
Dimension D² (mm) 215
