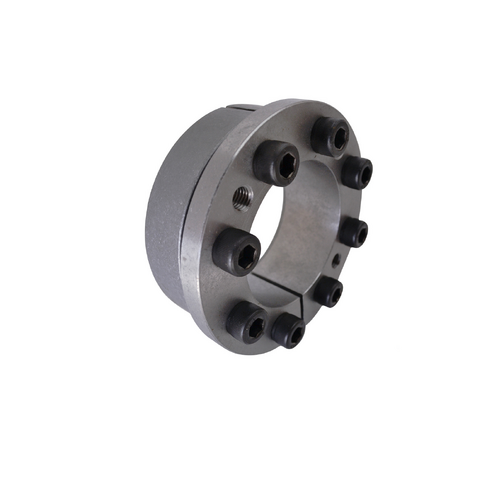

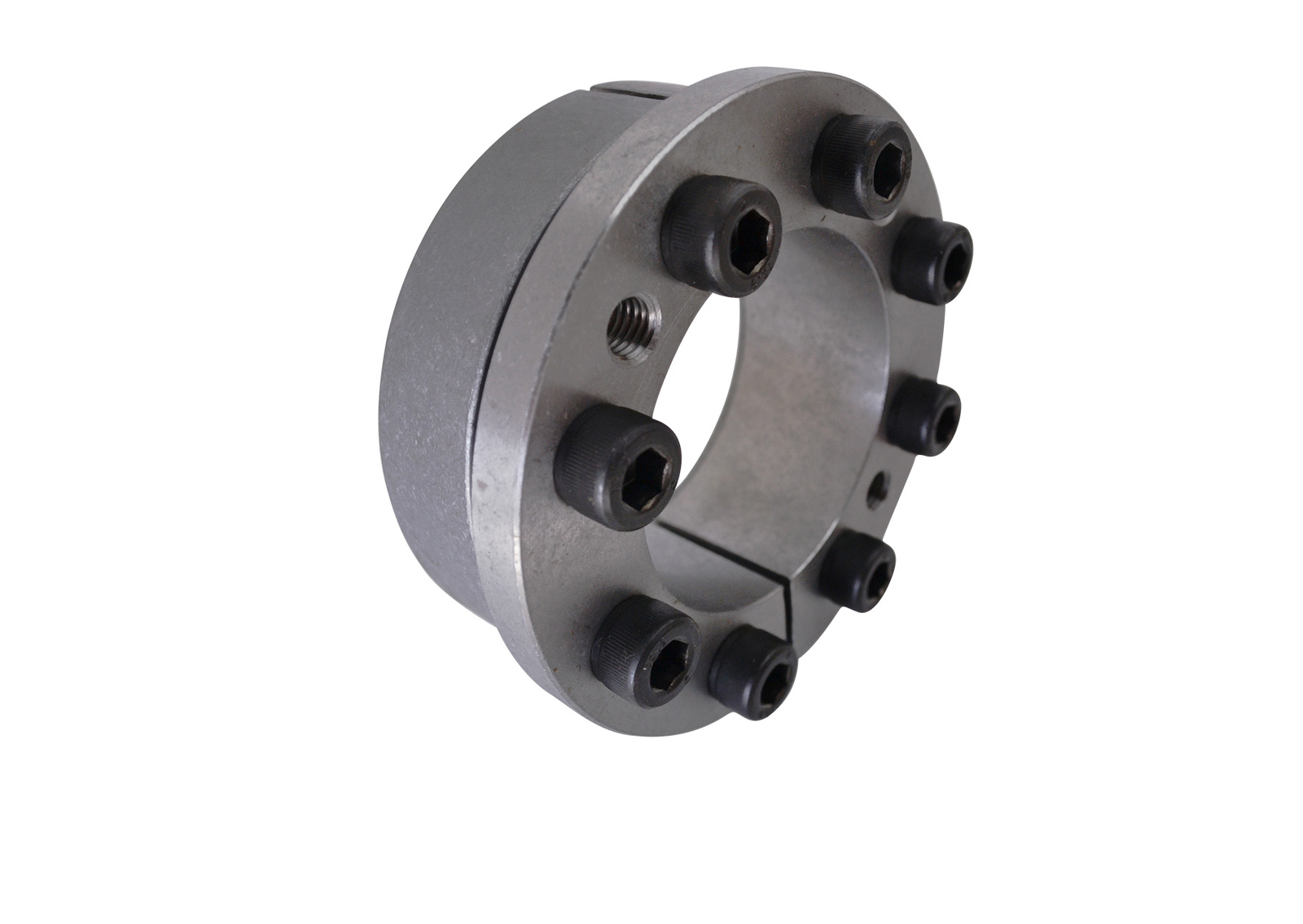

130X180mm Type 07 Locking Assembly Self Centering

$310.73



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU REACH07-130
(d) Inside Ø (mm) 130
(D) Outside Ø (mm) 180
Dimension D¹ (mm) 189
Dimension L¹ (mm) 34
Dimension L² (mm) 40
(L) Assembled Length (mm) 64
Locking Unit Type Type 07
No. Of Clamping Screws 12
Screw Size M12X35
Screw Tightening Torque (Nm) 145
Dimension L³ (mm) 52
