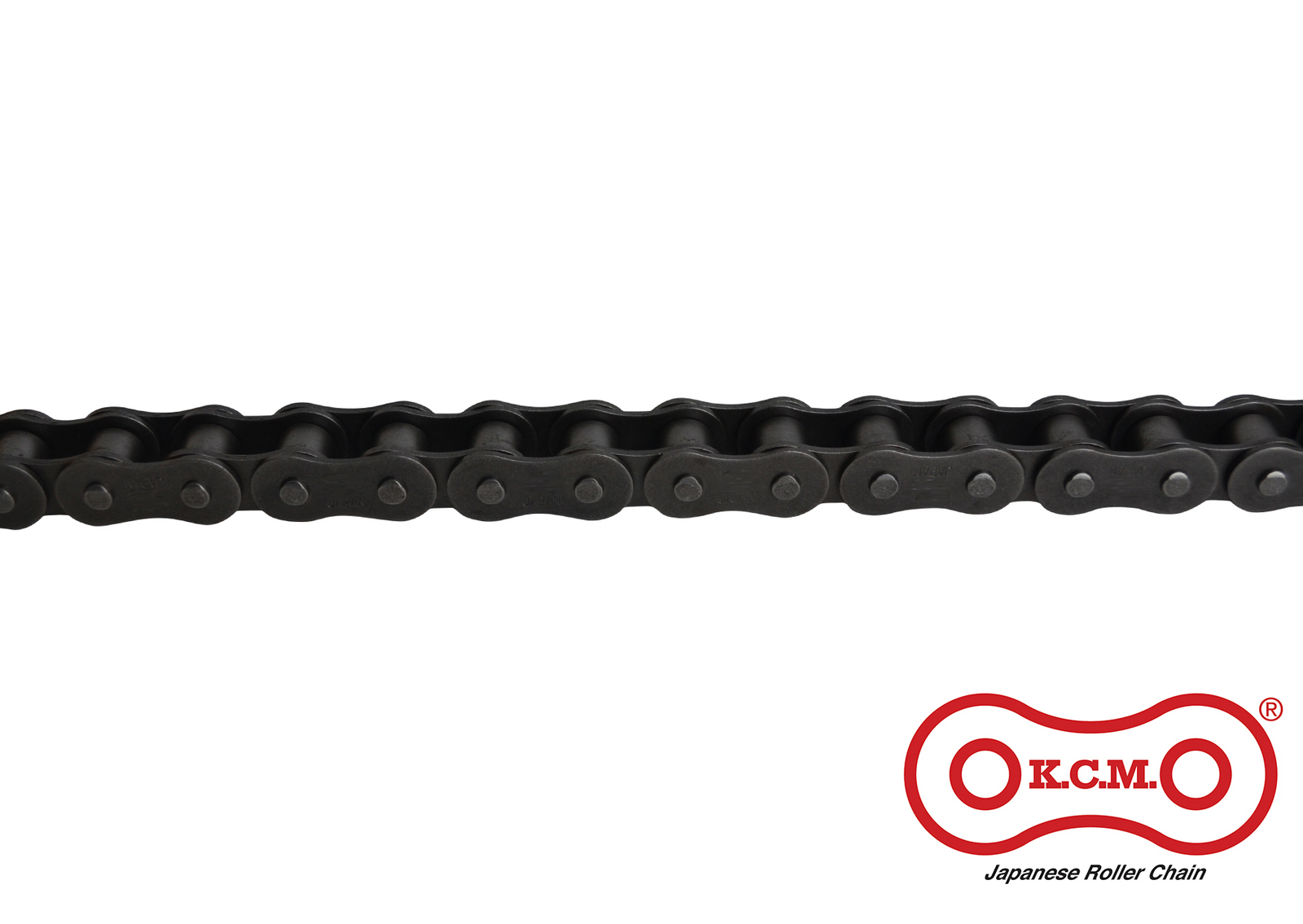

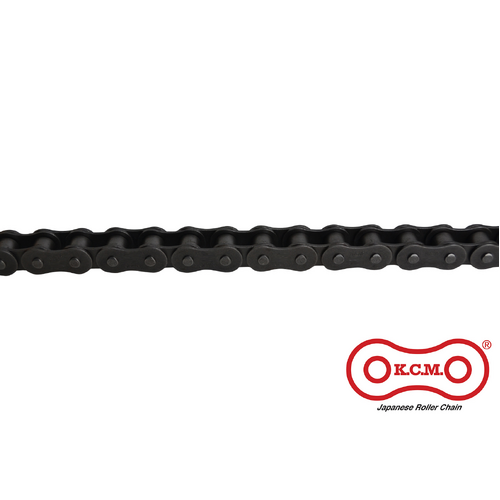

120HE-1 KCM Premium Roller Chain 1-1/2 Inch Pitch Extra Heavy ASA Simplex - Price per 10' Roll

$1,098.90Pack Size: 10



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 120HE-1-KCM
Brand KCM
Shipping Weight 1.9030kg
Grade Premium
Norm. ANSI, JIS
(P) Pitch (mm) 38.1 (1-1/2")
(W) Width Between Inner Pitch (mm) 25.4
(D) Roller Diameter (mm) 22.23
(d) Pin Diameter (mm) 11.11
(A) Pin (mm) 26.95
(B) Pin (mm) 30.15
(A+A) L¹ (mm) 53.9
(A+B) L¹ (mm) 57.1
(T) Link Plate Thickness (mm) 5.6
(H) Link Plate Height (mm) 35
