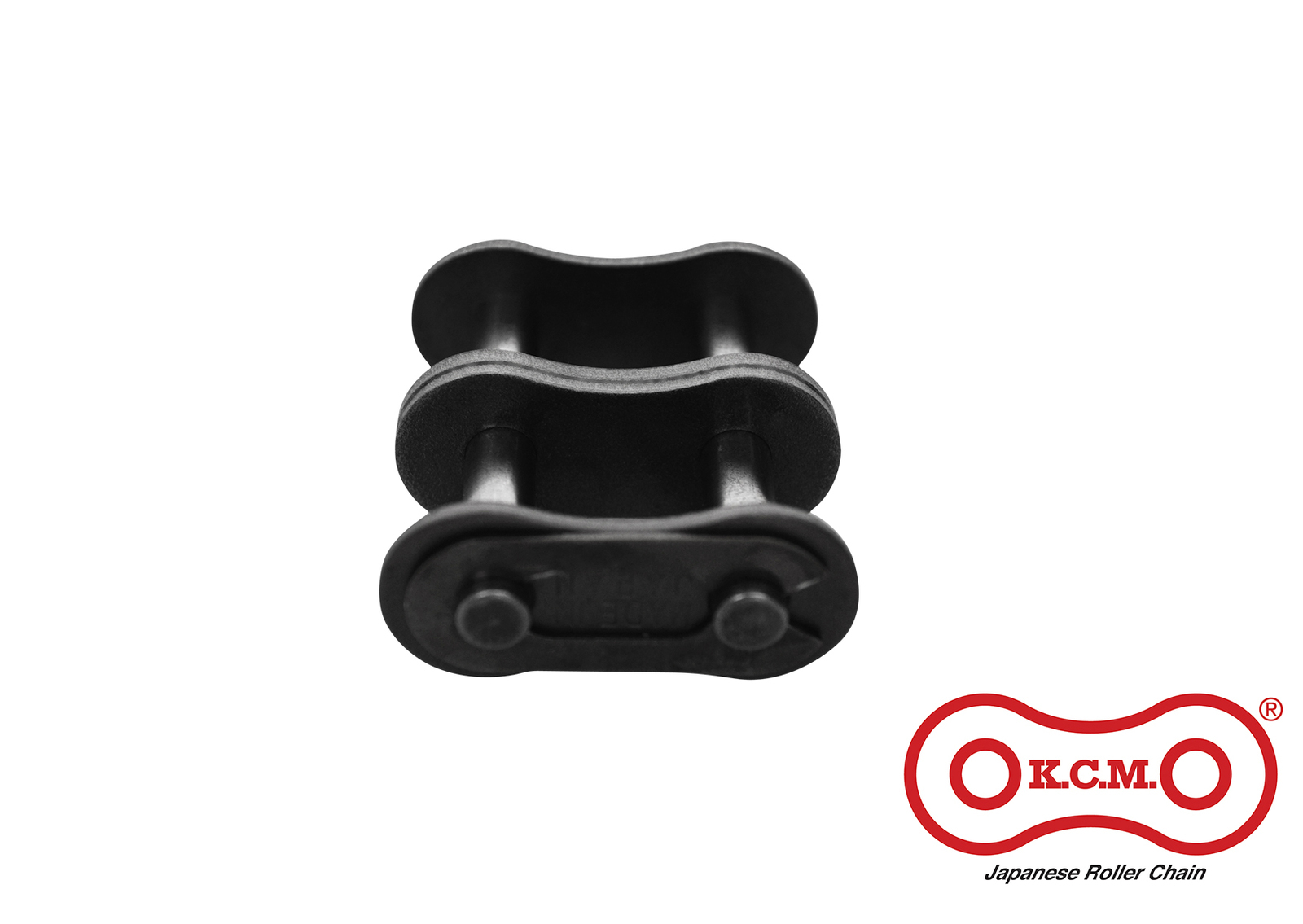

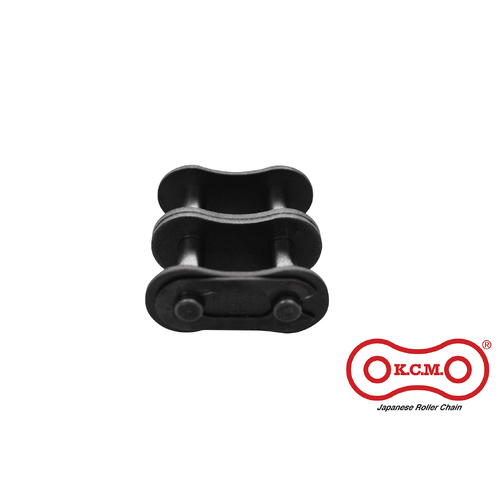

120-2CL KCM Premium Connecting Link 1-1/2 Inch Pitch ASA Duplex

$48.33



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 120-2CL-KCM
Brand KCM
Grade Premium
Norm. ANSI, JIS
(P) Pitch (mm) 38.1 (1-1/2")
(W) Width Between Inner Pitch (mm) 25.4
(D) Roller Diameter (mm) 22.23
(d) Pin Diameter (mm) 11.11
(A) Pin (mm) 47.9
(B) Pin (mm) 51.3
(A+A) L¹ (mm) 95.8
(A+B) L¹ (mm) 99.2
(L) Offset (mm) 100.7
(T) Link Plate Thickness (mm) 4.8
(H) Link Plate Height (mm) 36
