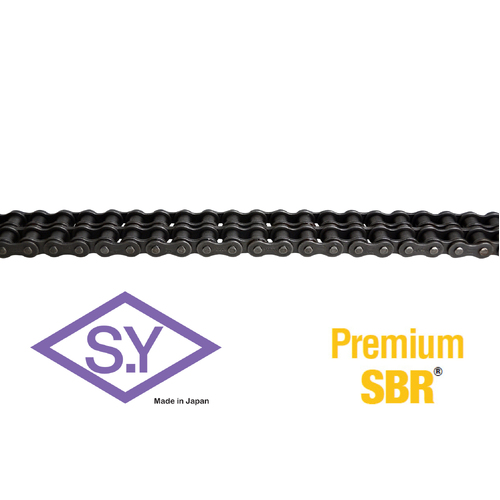

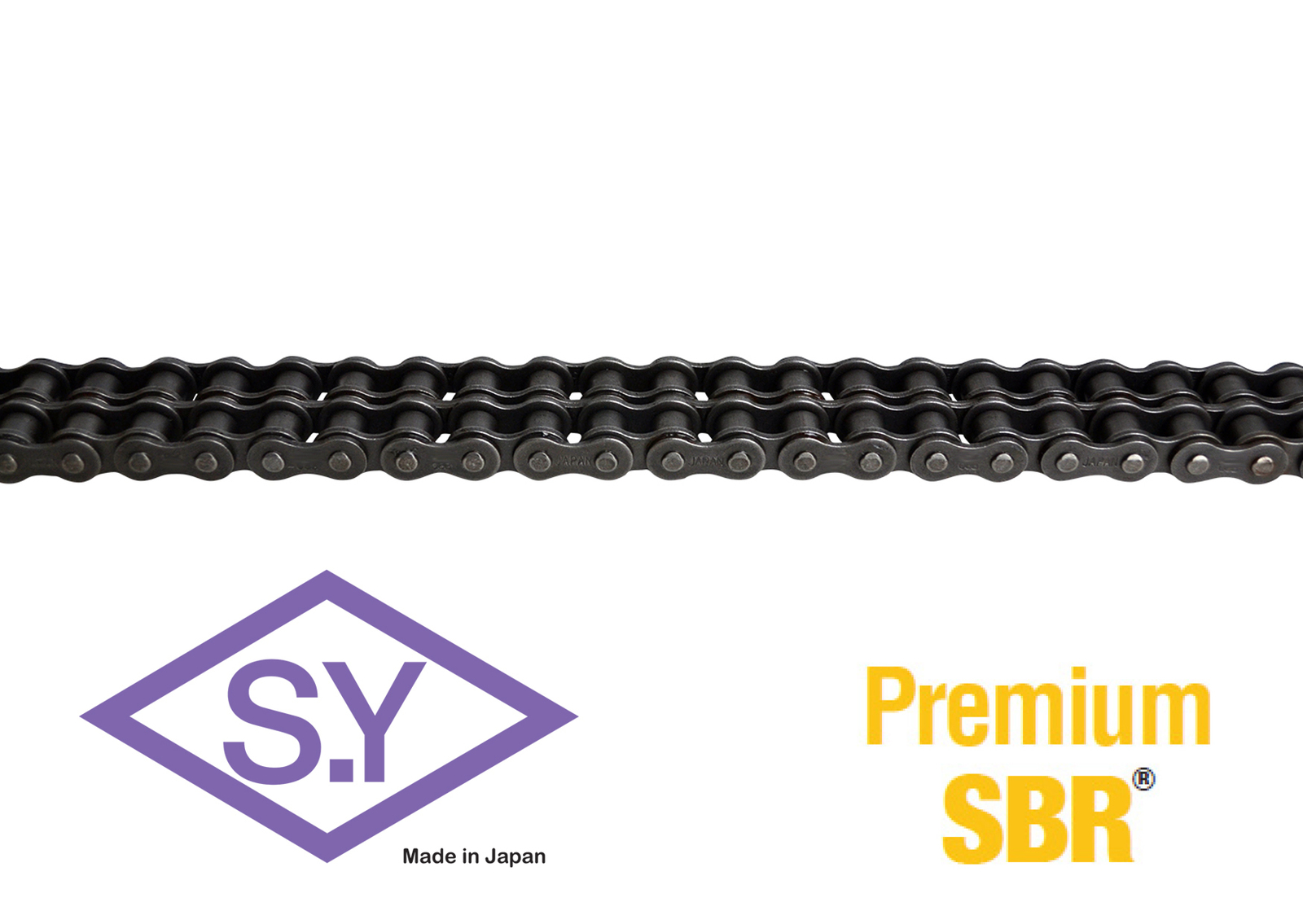

100H-2 SY Premium Roller Chain 1-1/4 Inch Pitch Heavy ASA Duplex - Price per 10' Roll

$1,329.44



Large and/or Heavy Item

Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 100H-2-SY
Brand SY
Shipping Weight 26.0000kg
Shipping Width 0.400m
Shipping Height 0.010m
Shipping Length 0.400m
Shipping Cubic 0.001600000m3
Grade Premium
Norm. ANSI, JIS
(P) Pitch (mm) 31.75 (1-1/4")
(W) Width Between Inner Pitch (mm) 19.05
(D) Roller Diameter (mm) 19.05
(d) Pin Diameter (mm) 9.53
(A) Pin (mm) 40.8
(B) Pin (mm) 44.2
(A+A) L¹ (mm) 81.6
(A+B) L¹ (mm) 85.0
(T) Link Plate Thickness (mm) 4.8
(H) Link Plate Height (mm) 29.3
