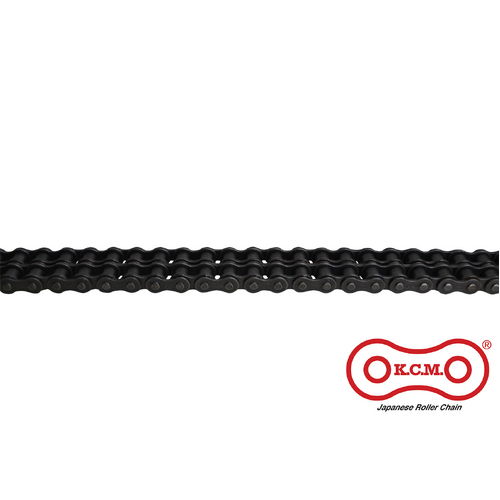

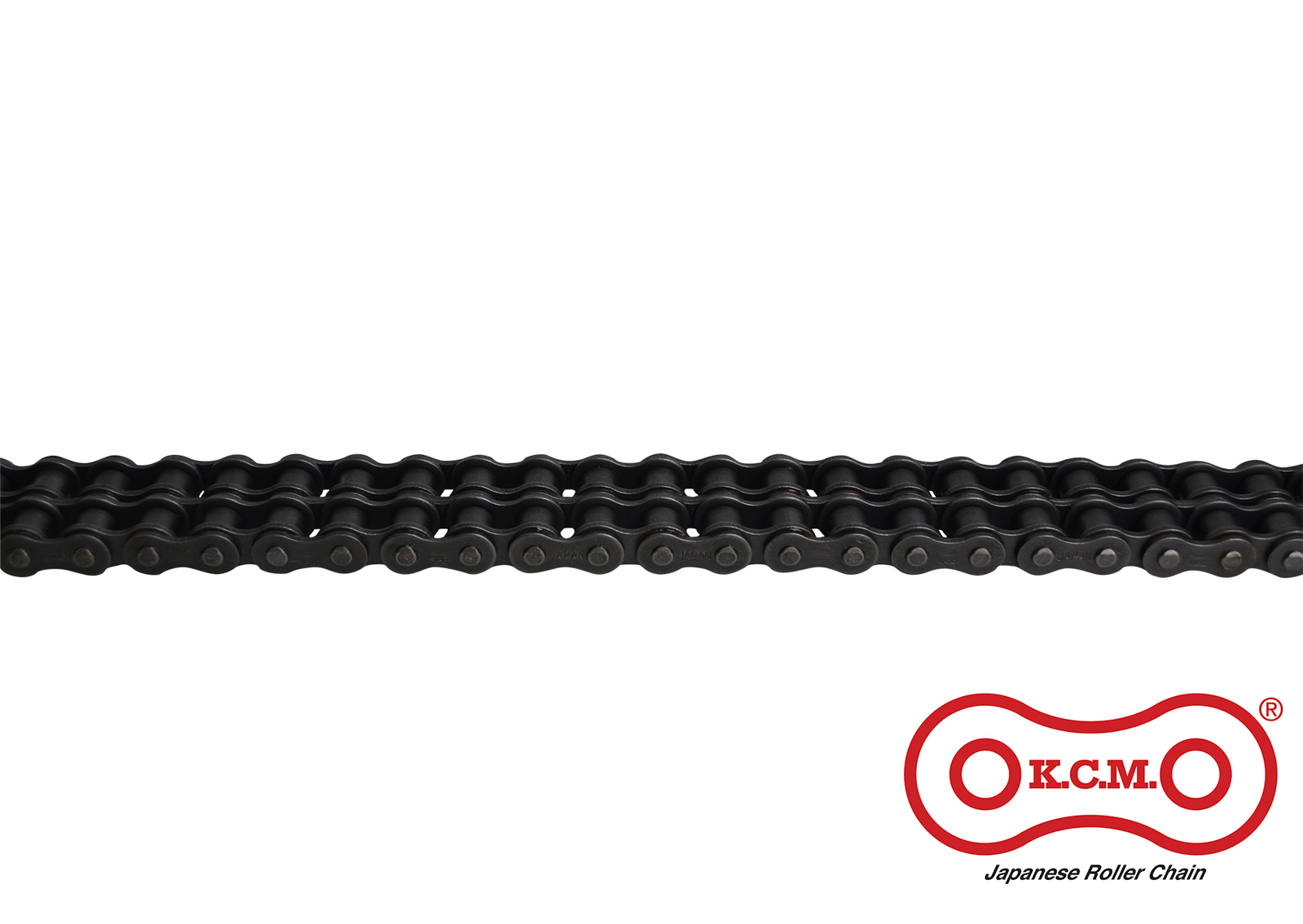

100-2 KCM Premium Roller Chain 1-1/4 Inch Pitch ASA Duplex - Price per 10' Roll

$998.78Pack Size: 10



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 100-2-KCM
Brand KCM
Shipping Weight 2.3091kg
Grade Premium
Norm. ANSI, JIS
(P) Pitch (mm) 31.75 (1-1/4")
(W) Width Between Inner Pitch (mm) 19.05
(D) Roller Diameter (mm) 19.05
(d) Pin Diameter (mm) 9.54
(A) Pin (mm) 38
(B) Pin (mm) 40.95
(A+A) L¹ (mm) 76
(A+B) L¹ (mm) 78.95
(L) Offset (mm) 80.85
(T) Link Plate Thickness (mm) 4
(H) Link Plate Height (mm) 28.9
