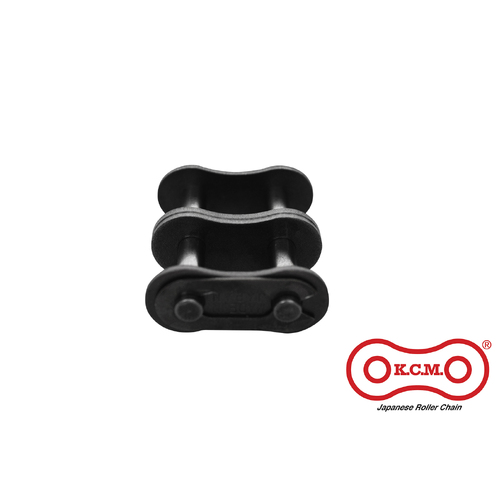

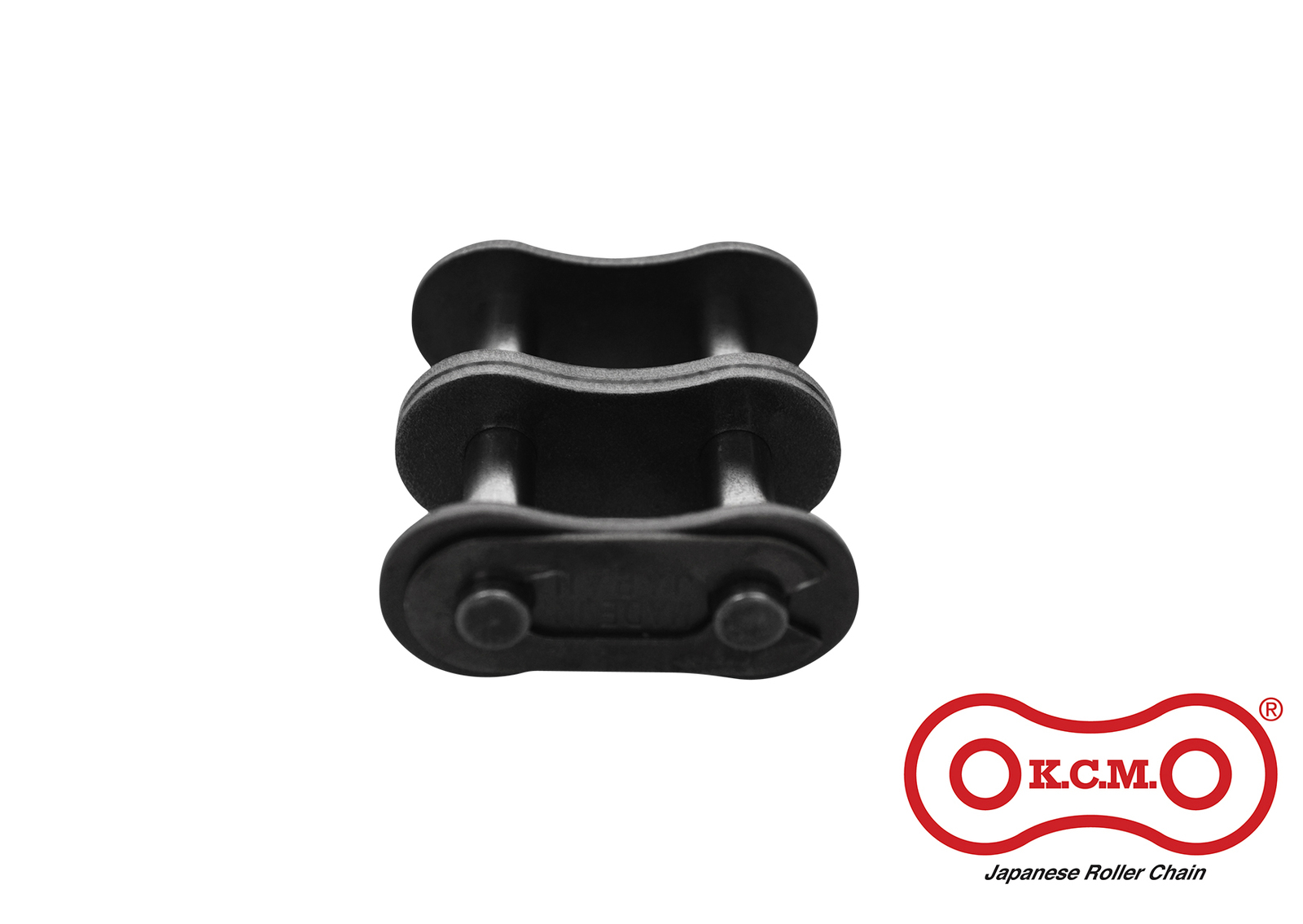

06B-2CL KCM Premium Connecting Link 3/8 Inch Pitch BS Duplex

$4.93



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 06B-2CL-KCM
Brand KCM
Grade Premium
Norm. ISO-B, ISO 606-B
(P) Pitch (mm) 9.525 (3/8")
(W) Width Between Inner Pitch (mm) 5.72
(D) Roller Diameter (mm) 6.35
(d) Pin Diameter (mm) 3.28
(L) Offset (mm) 25.4
(T) Link Plate Thickness (mm) 1
(H) Link Plate Height (mm) 8.1
(L²) Pin (mm) 23.85
